Fixed 14μM F1.0 AA07L Focus 7mm Thermal Infrared Lens

  • 1
  • 2
  • 3

Model Number : AA07L

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1-49 Sets

Price : Negotiation

Payment Terms : All are acceptable except L/C

Supply Ability : 500/Month

Delivery Time : 5-8days

Module : AA07L

Focus Length : 7mm

F number : F1.0

Lens mounting : M25*0.5

Adapter core : 384x288 shutter

FOV（H×V） : 52.1゜×39.4゜

Lenses Material : High pure Ge Mono crystal

Operating Wave length（μm） : 8～14

Optical athermalization : Yes

Operating temperature : -40℃～+60℃

Aperture : Fixed circular aperture

Contact Now

AA07L Athermal Ge Lens Thermal Imaging Lens Wide Angle Lens F Number 1.0

Module AA07L Detect Identify Verify
Focus Length 7mm
F number F1.0
Lens mounting M25*0.5
Adapter core 384x288 shutter
FOV(H×V) 17μm384×288 52.1゜×39.4゜ 206m 51m 26m
Lenses Material High pure Ge Mono crystal The above data according to the Johnson criterion calculation (1.5 pixels for detection , 6 pixels for identification,12 pixels for verification, the probability is 50%, the contrast of target and background is 1). The target size is calculated based on the critical size of the human( 0.75 meters). The actual range will be affected by other factors such as attenuation vary, different climatic conditions, the thermal sensitivity of the detector pixel, noise, image algorithm, target background difference.
Operating Wave length(μm) 8～14
Distortion ＜0.7%
Optical athermalization Yes
Central MTF 0.72 @20 line to/mm
Coating transmissivity 96%
Focusing Athermal Fixed

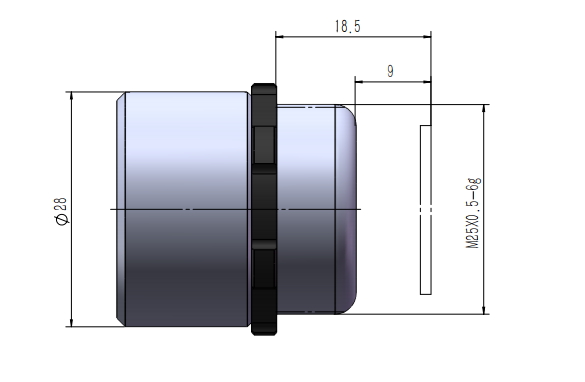

Intercept 9mm
Operating temperature -40℃～+60℃
Weight 27.5g(No lens cover)
Max diameter Φ23mm
Length 26.5mm
Aperture Fixed circular aperture

Fixed 14μM F1.0 AA07L Focus 7mm Thermal Infrared Lens
