AM3875 Infrared Imager Binocular
Data sheet
| Detector Type | Uncooled focal plane |
| Resolution | 384×288 |
| LCD Resolution | 720×540 |
| Focal Length | 75mm |
| Eyepiece | Monocular display (adjustable curve correction) |
| FOV | 5.0°×3.7° |
| Digital Zoom | 2×; 4× |
| Wavelength Range | 8-14μm |
| Image Frequency | 50Hz |
| Palette | Rainbow, Hot metal, White hot, Black hot |
| Focusing Mode | Adjustable |
| Battery | Built-in rechargeable battery |
| Storage | 8G |
| Image Storage | BMP |
| USB | Type-C |
| Working Hours | 3 hours |
| Shutdown Time | 40minutes |
| Weight | 500g |
| Size | 180mm×72mm×62mm(25mm focal length) |
| Protection Level | IP66 |
| Working Temperature | 0℃-45℃ |
| Storage Temperature | -20℃-60℃ |
Introduction
AB3825outdoor thermal imaging telescope, with advanced uncooled focal plane infrared detector and high-quality optical lens as the core, combined with a convenient and fast operating system, compact design, fully functional expansion spare parts, long service life, sturdy Durable and suitable for various environments, it creates an infrared thermal imaging tool with "clear imaging, simple operation and easy to carry" for users.

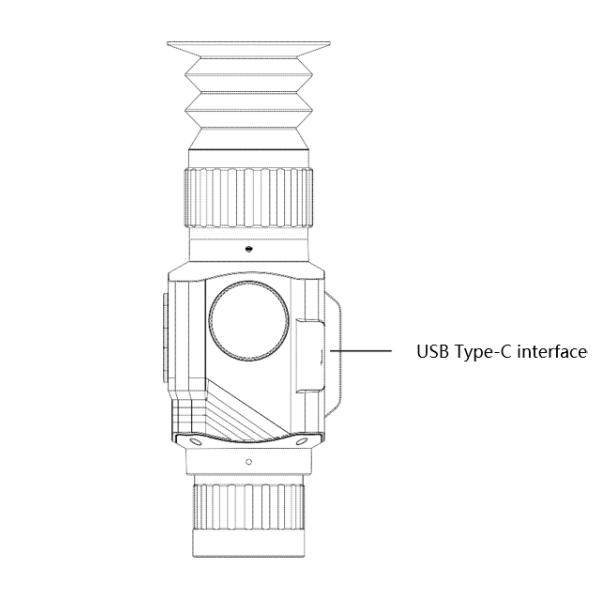

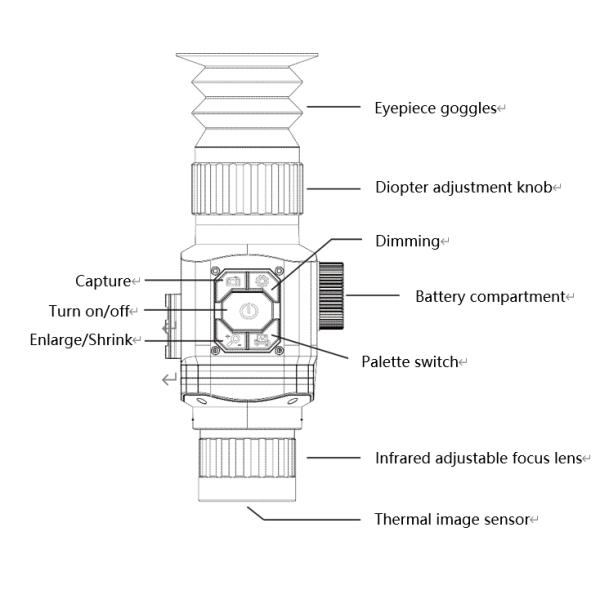

Structure
This product is used in wild animal observation, search and rescue, police law enforcement investigation, night patrol, outdoor sports, personal security, etc. This product has a camera function, which can be connected to a computer via USB to browse the photos taken, which is convenient for multiple people to observe at the same time, creating possibilities for more applications.
AOI is the manufacturer which have built world-class R&D center with world-class core technology, with well experienced marketing, sales and service team support AOI offers mature solutions which match with Navy, Army, Vehicle and Related applications.
